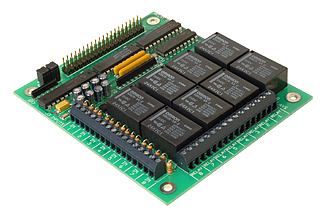

The Relay I/O peripheral board has 8 relays and 8 optically isolated inputs available for addition to several JK microsystems embedded controllers.

The on-board relays have 10 ampere, normally open contacts with a recommended maximum continuous rating of 5 amperes. The opto-isolated inputs accept 3-24VAC or DC and will withstand a momentary short to 120VAC. Both the relay contacts and the opto-isolated inputs are terminated with industrial-grade screw connectors.

8 Channel Relay Peripheral Kit (99-0001) includes the 8 Channel Relay peripheral board (84-0002), 2 board 40 pin bus cable, standoff kit, and users manual.
$122.00 - Quantity 1
